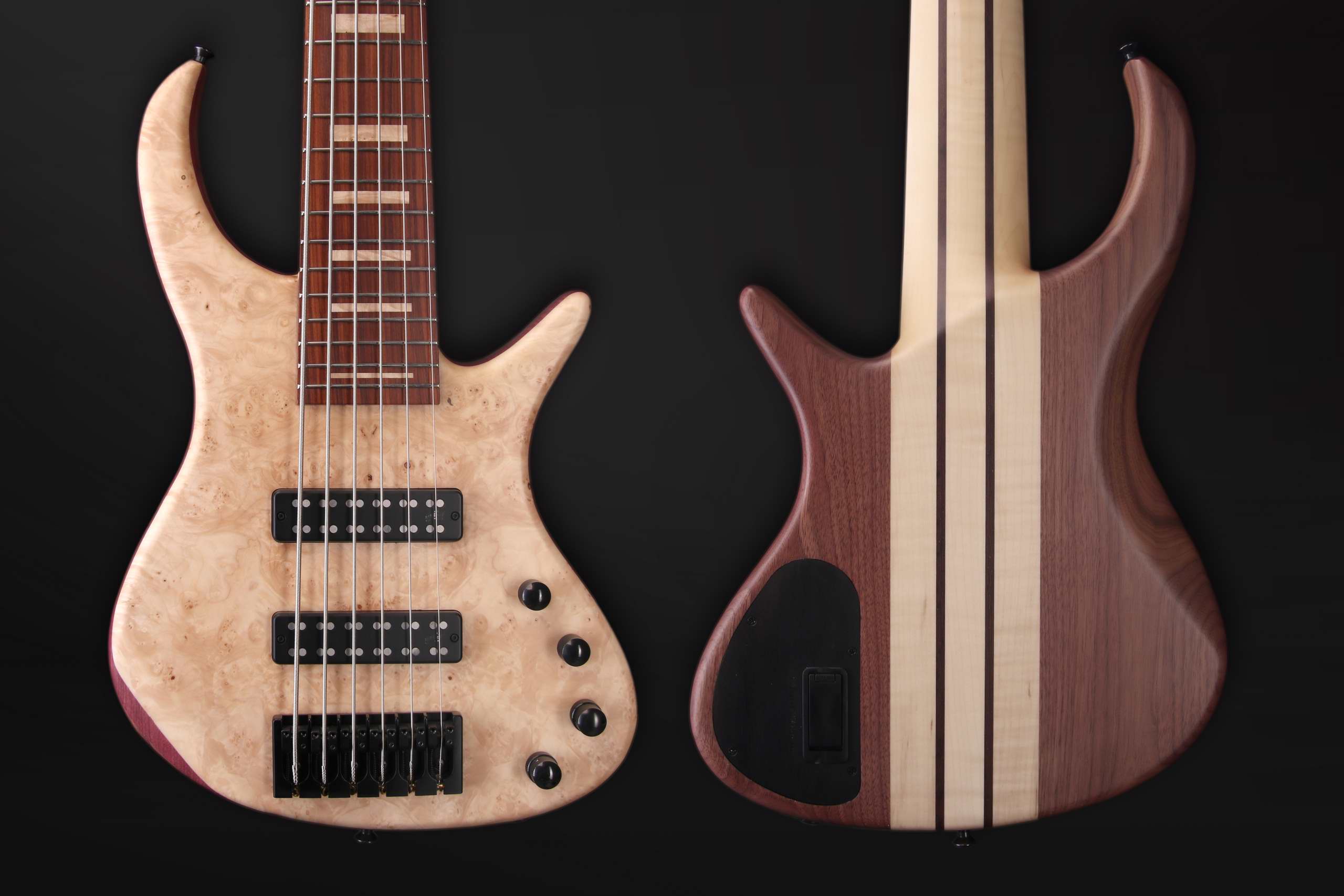

AV1

Burl Maple/Purpleheart/Walnut

  • 6 string bass with modern sound
  • Pau Ferro fingerboard with wooden blocks
  • Gorgeous Burl Maple top
  • Hipshot ® black brass bridge & tuners
  • Aguilar ® Dualcoil pickups
  • Aguilar ® OBP-3 active electronics
  • Smooth Satin matt finish
  • Certificate of origin with used woods
Price from 2 692,00 € + VAT

Gallery

Technical specifications

Show

Woods

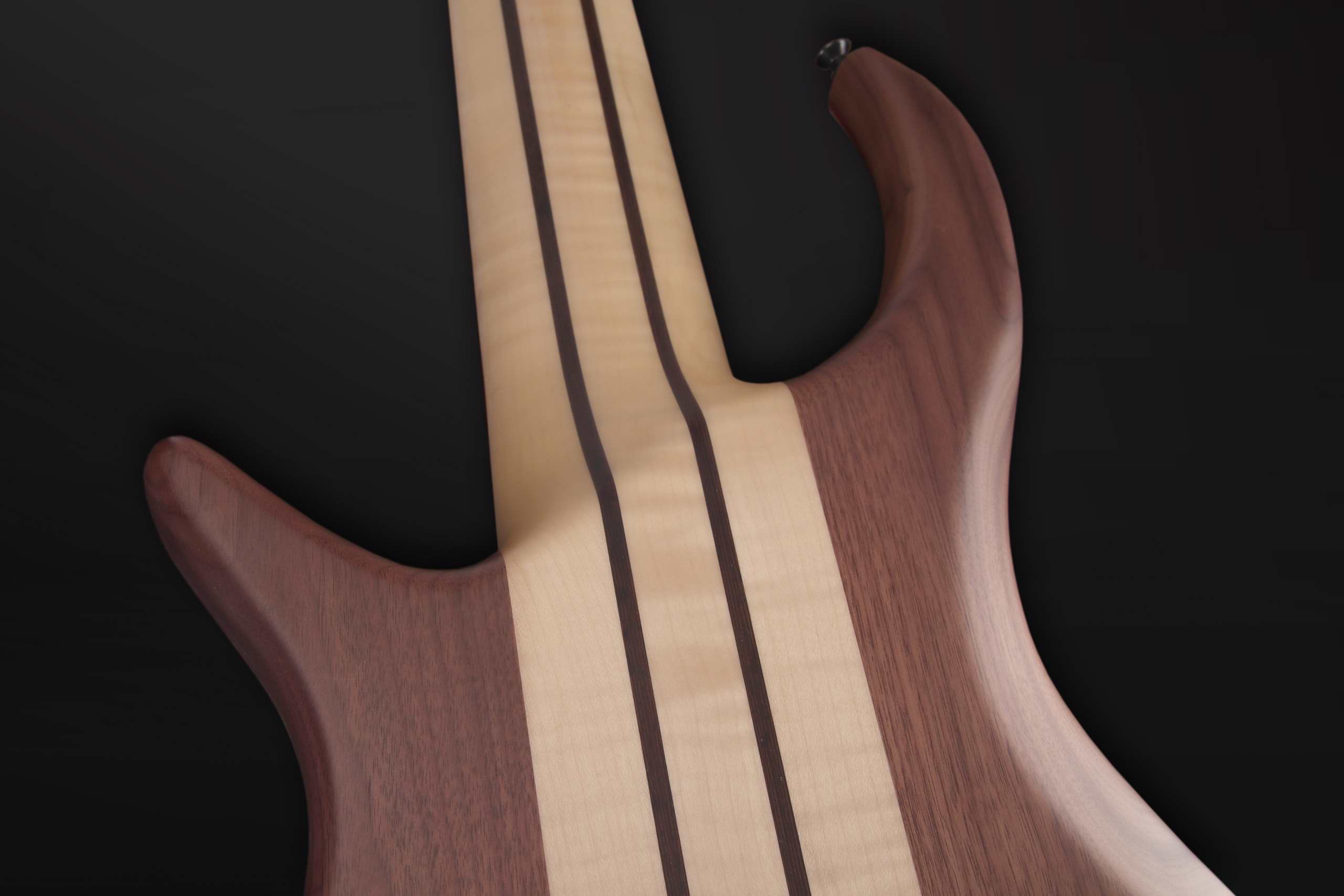

  • Body: Burl Maple top with Purpleheart resonant layer and American Black Walnut back
  • Neck: Laminate 5 pieces, Maple/Bubinga
  • Width at the nut: 56 mm
  • Width at the 24.fret: 90 mm
  • Fingerboard radius: 16"/407 mm
  • Fingerboard: Pau Ferro
  • Positional marks on the fingerboard: Burl Maple blocks
  • Positional marks at the side of the fingerboard: Pearl
  • Nut: Brass
  • Body finish: Natural Satin Matt
  • Neck finish: Natural Satin Matt

Hardware

  • Bridge: Hipshot A style, black
  • String spacing at the bridge: 18 mm
  • Tuning machines: Hipshot Ultralite, black
  • Control knobs: Metal knobs with oval head, black
  • Strap pins: Dunlop Strap Locks, black
  • Strings: Elixir Nickel Roundwound 0.032-0.125
  • Weight: 4.25 kg

Electronics

  • Neck pickup: Aguilar Super Double 6
  • Bridge pickup: Aguilar Super Double 6
  • Electronics: Aguilar OBP-3 Active/Passive electronics
  • Wiring: 1x main volume with Push/Pull to passive mode, 1x balance between pickups, 1x EQ bass, 1x EQ mids with push/pull to switch frequency 400/800 Hz, 1x EQ treble
  • Battery: 1x 9V
  • Output jack: Stereo 6.3 mm

Available custom options

Show

Woods

  • Tops: your choice and availability
  • Body: Laminate or 2 pieces
  • Neck: Laminate 5, 7 or 9 pieces, Hard Maple/Wenge or your choice
  • Fingerboard: African Ebony, Birdseye Maple, Rosewood or Wenge
  • Positional marks on the fingerboard: Dots, blocks or custom graphics
  • Positional marks at the side of the fingerboard: Pearl, Abalone or coloured plastic dots, Luminlay
  • Nut: Ebony, Tusq or Brass
  • Body finish: High Glossy, Satin Matt or oil&wax
  • Neck finish: High Glossy, Satin Matt or oil&wax

Hardware

  • Hipshot Bridges: Hipshot Vintage, A, B Triple Lock style,
  • Colour of hardware: Chrome, Black or Gold
  • String spacing at the bridge: 16-20 mm
  • Tuning machines: Hipshot Ultralite
  • Colour of hardware: Chrome, Black or Gold
  • Gotoh bridges: Gotoh 303SJ-5
  • Tuning machines:  Gotoh GB707
  • Colour of hardware: Chrome, Cosmo Black, Black or Gold
  • Frets: 24 x Medium Jumbo 2.4 mm or Jumbo 2.9 mm
  • Strap pins: SImple or Schaller Strap Locks
  • Strings: Elixir Nickel Roundwound 0.045-0.130 or your choice

Pickups & electronics

  • Pickups: Singles or humbuckers
  • Brands: EMG, Kent Armstrong, Nordstrand, Aguilar, Delano, Bartolini
  • Electronics: Active/passive electronics with variable wiring
  • Brands: AV Basses, Aguilar, Glockenklang, Nordstrand, Bartolini
