Technical specifications

Show

Woods

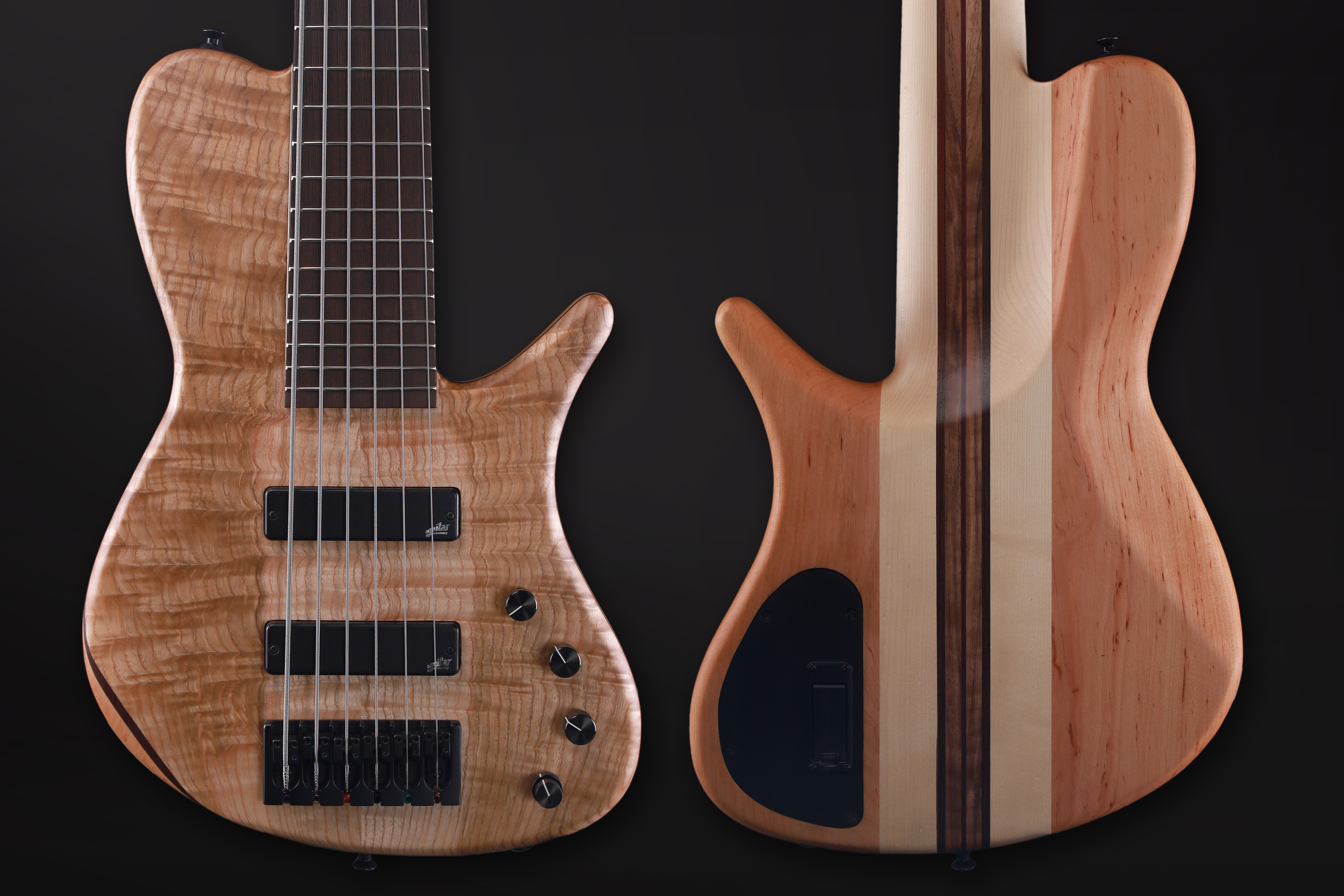

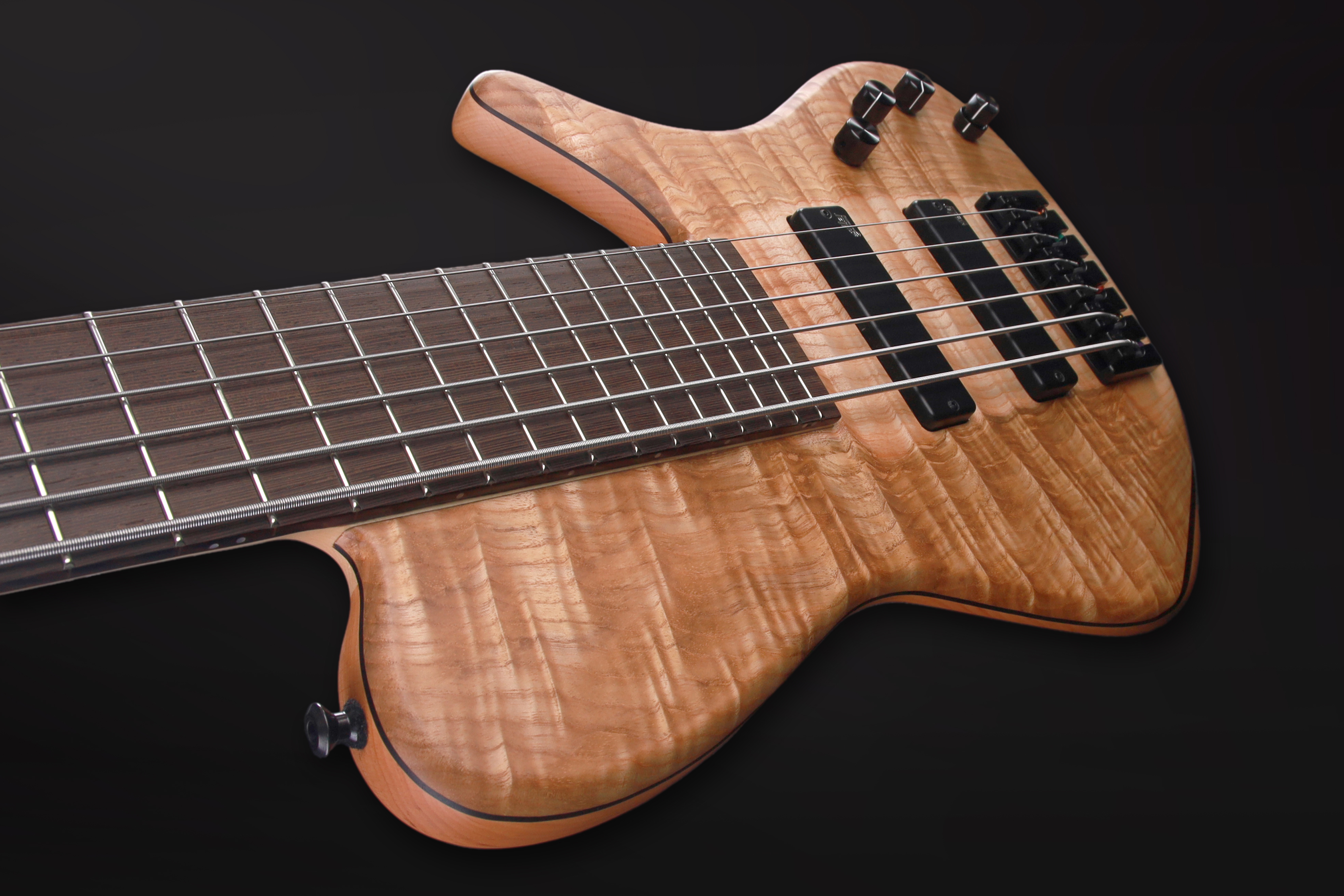

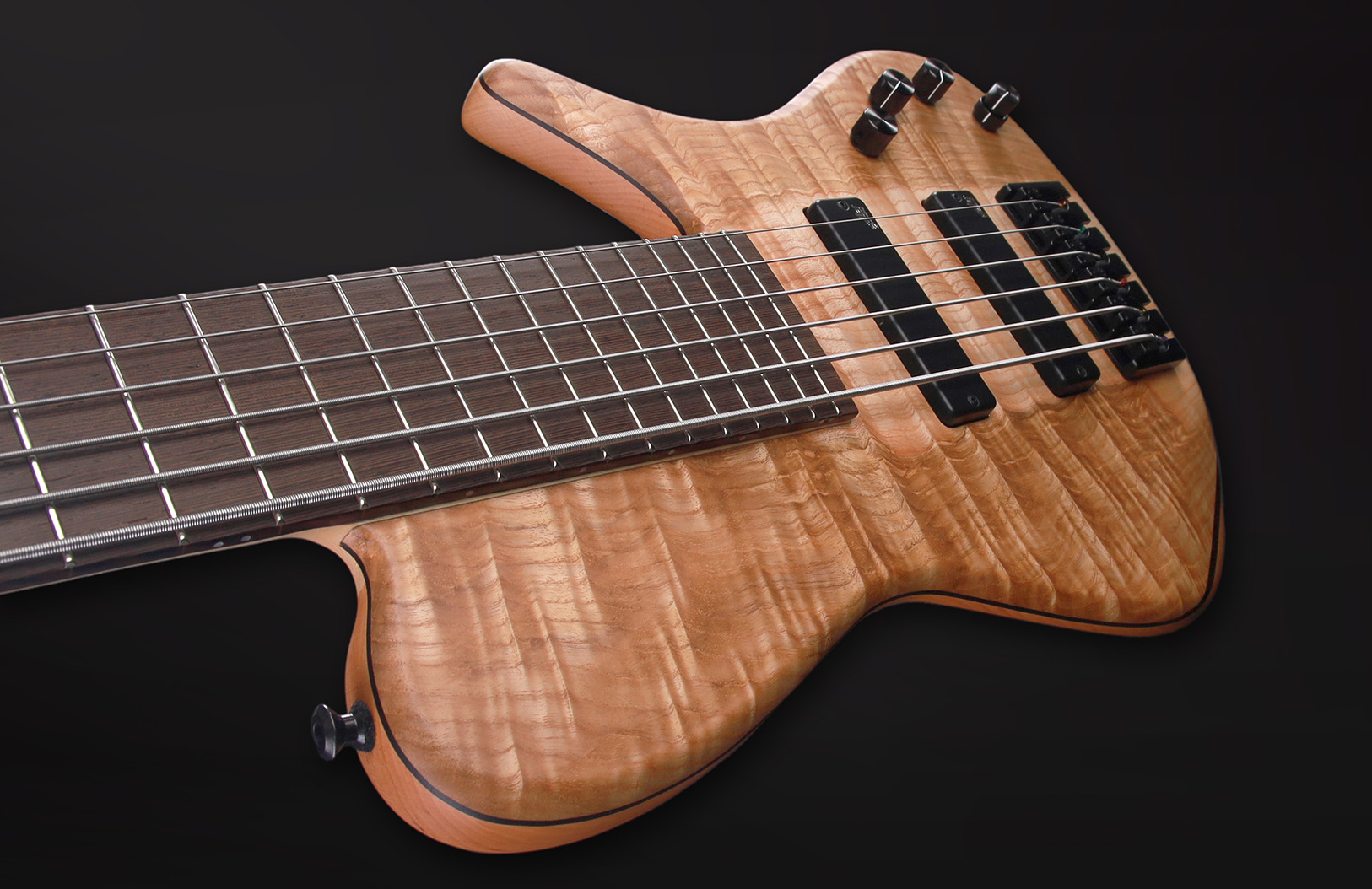

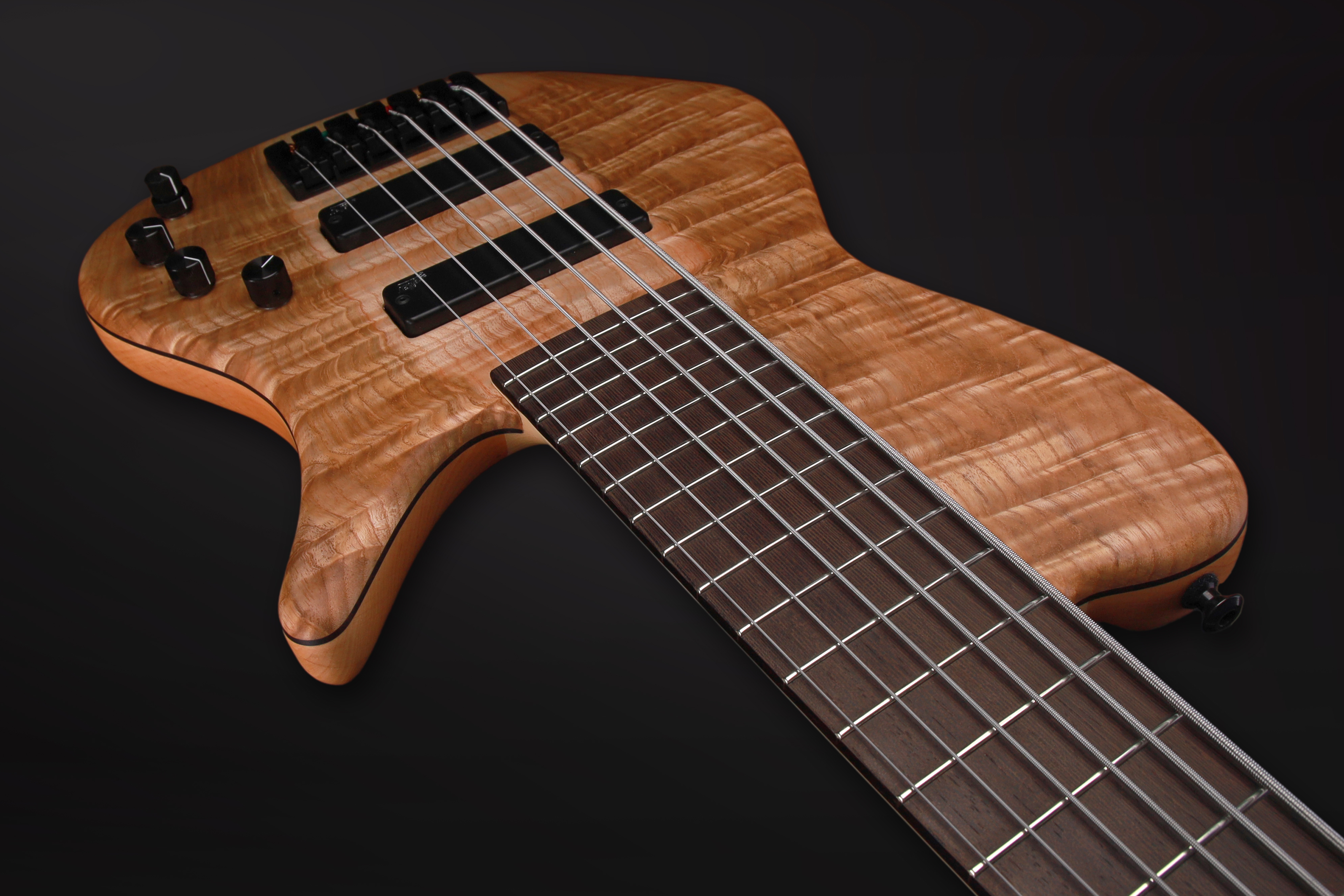

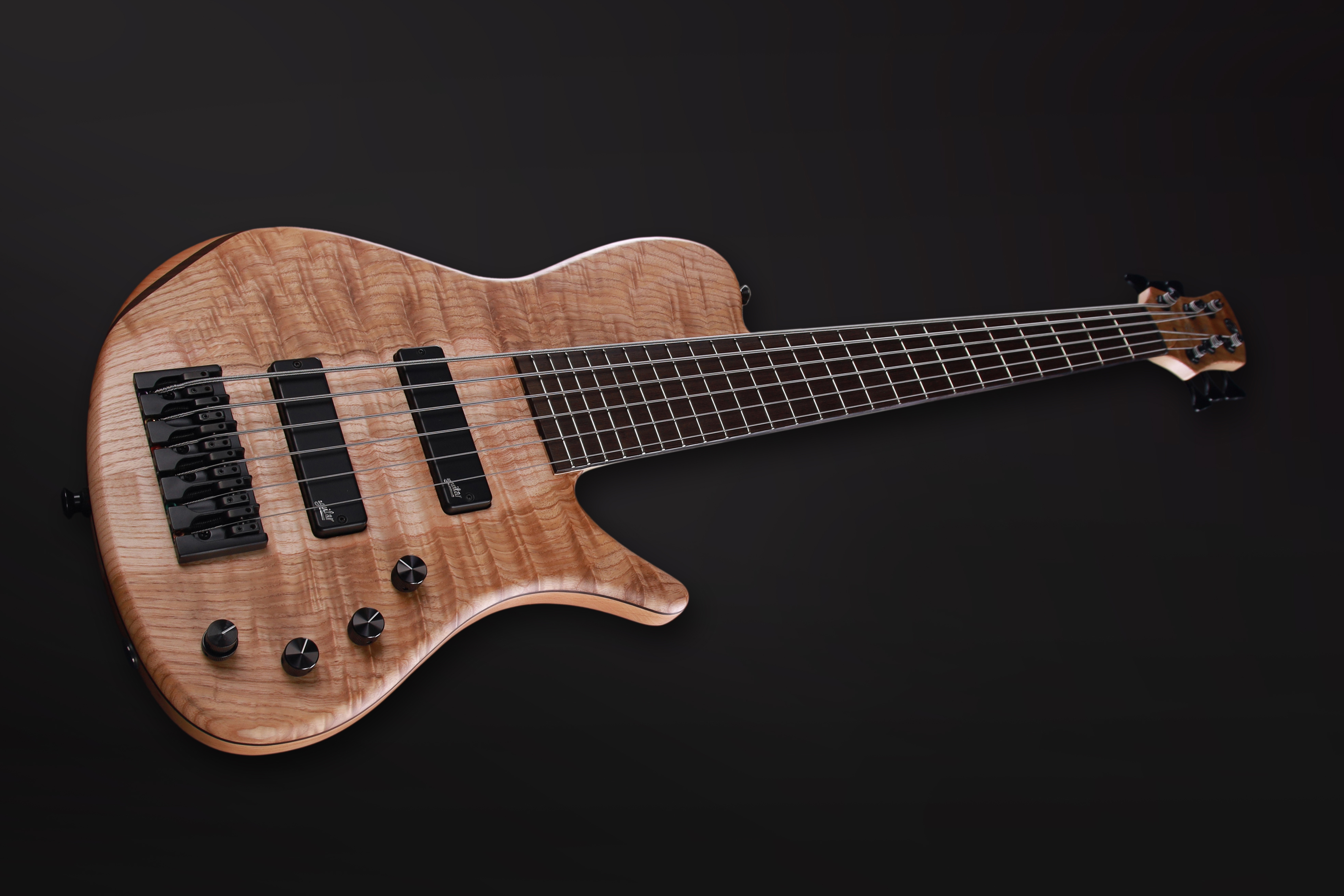

  • Body: Flamed Ash top with Rosewood layer, European Alder

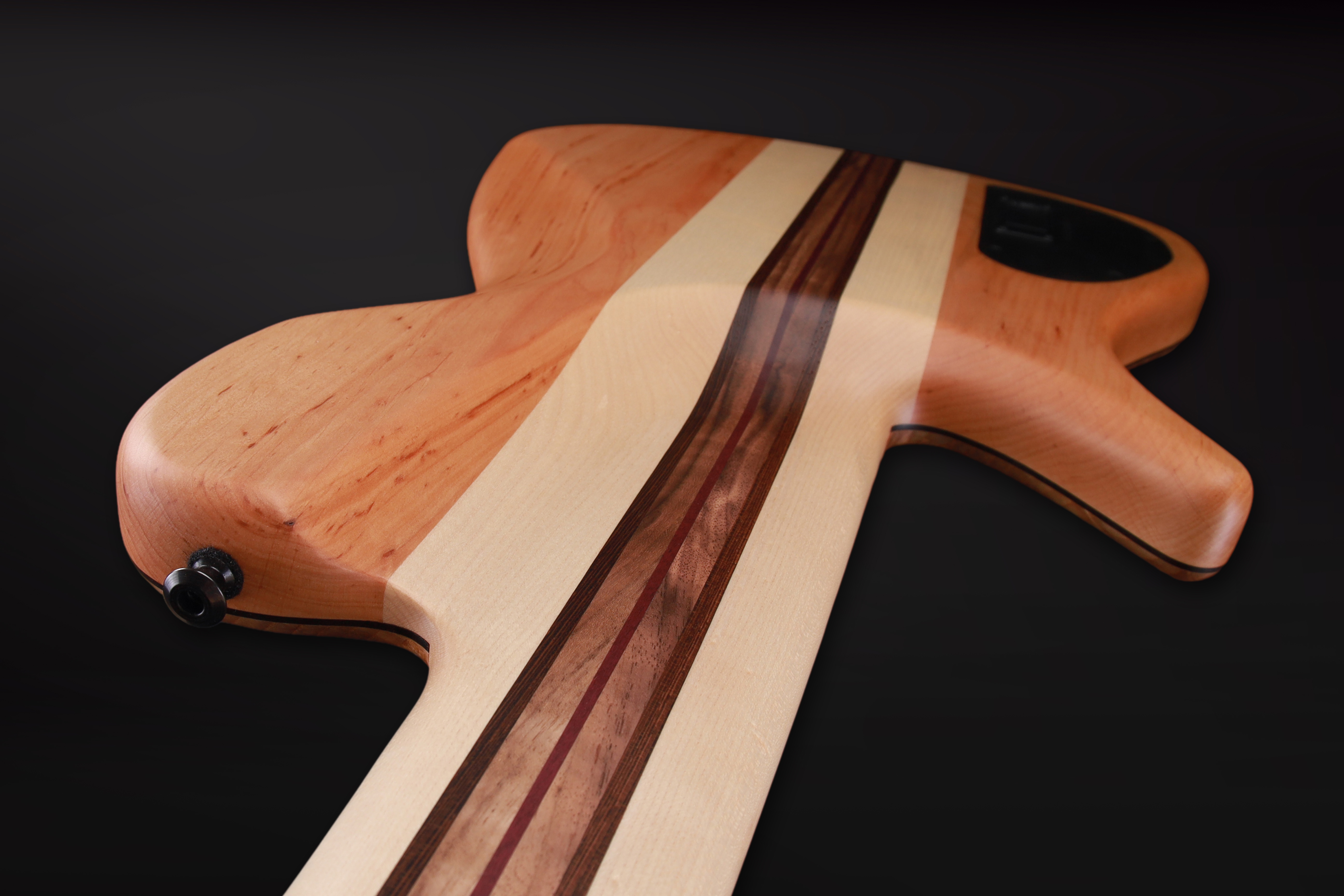

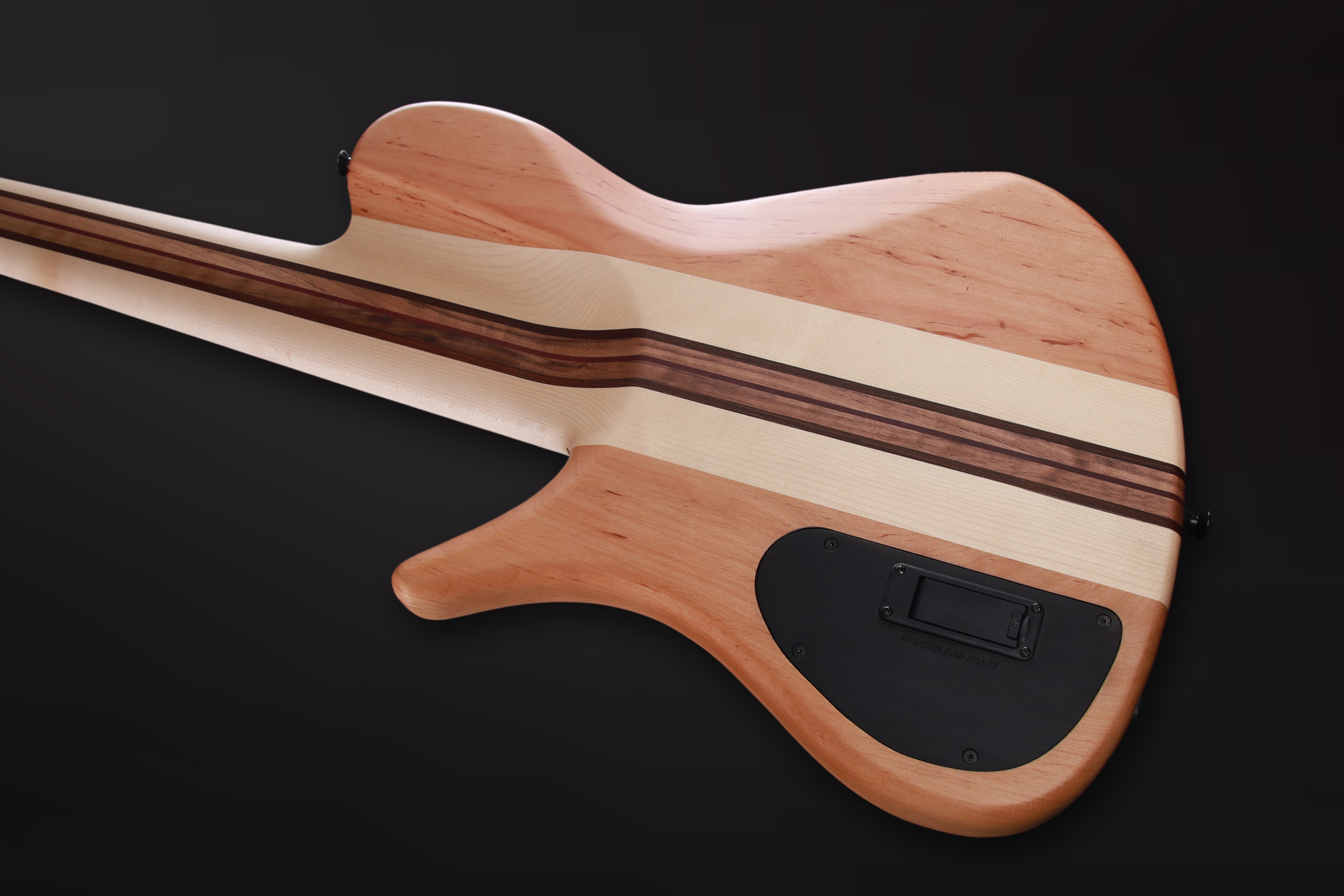

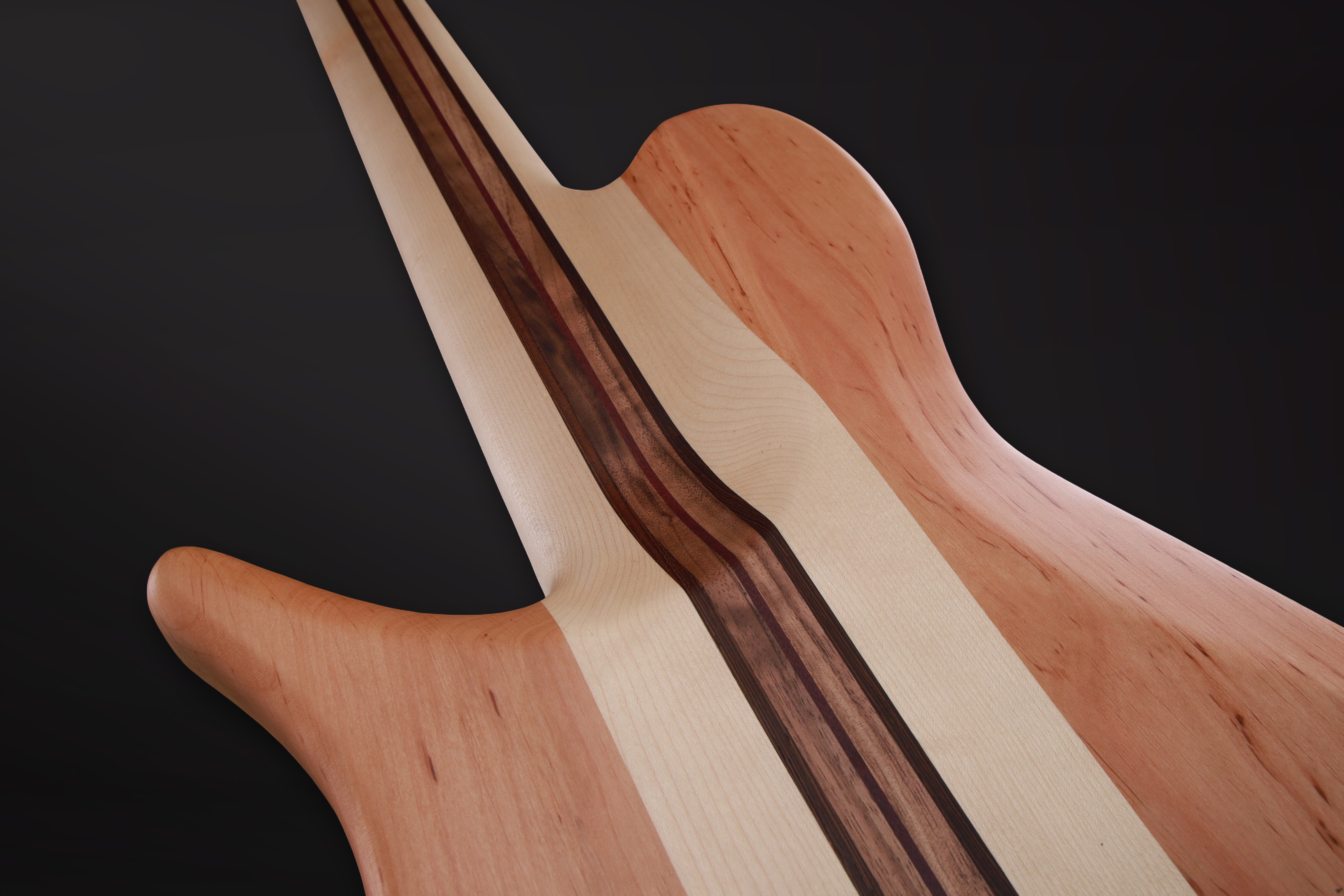

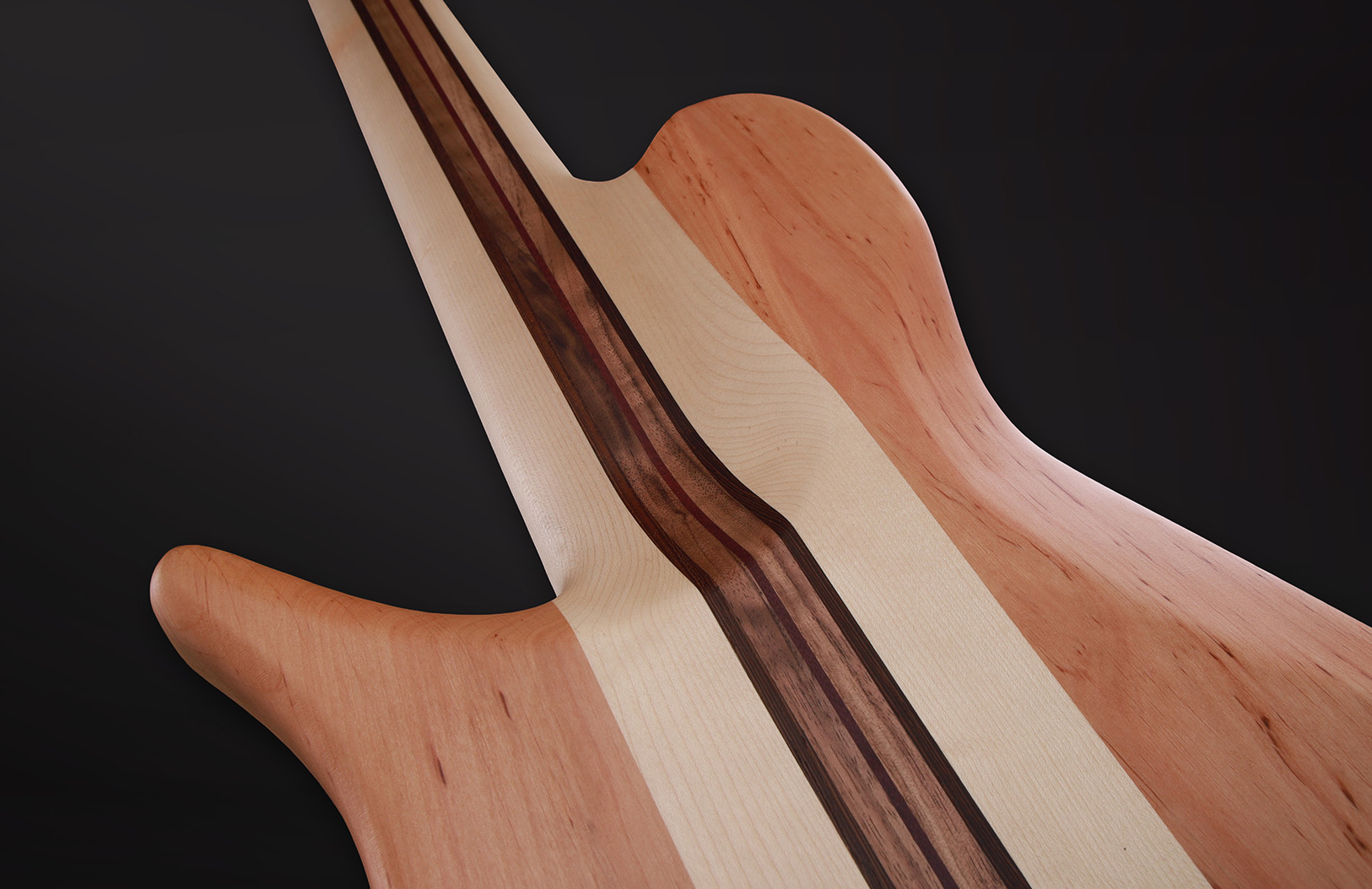

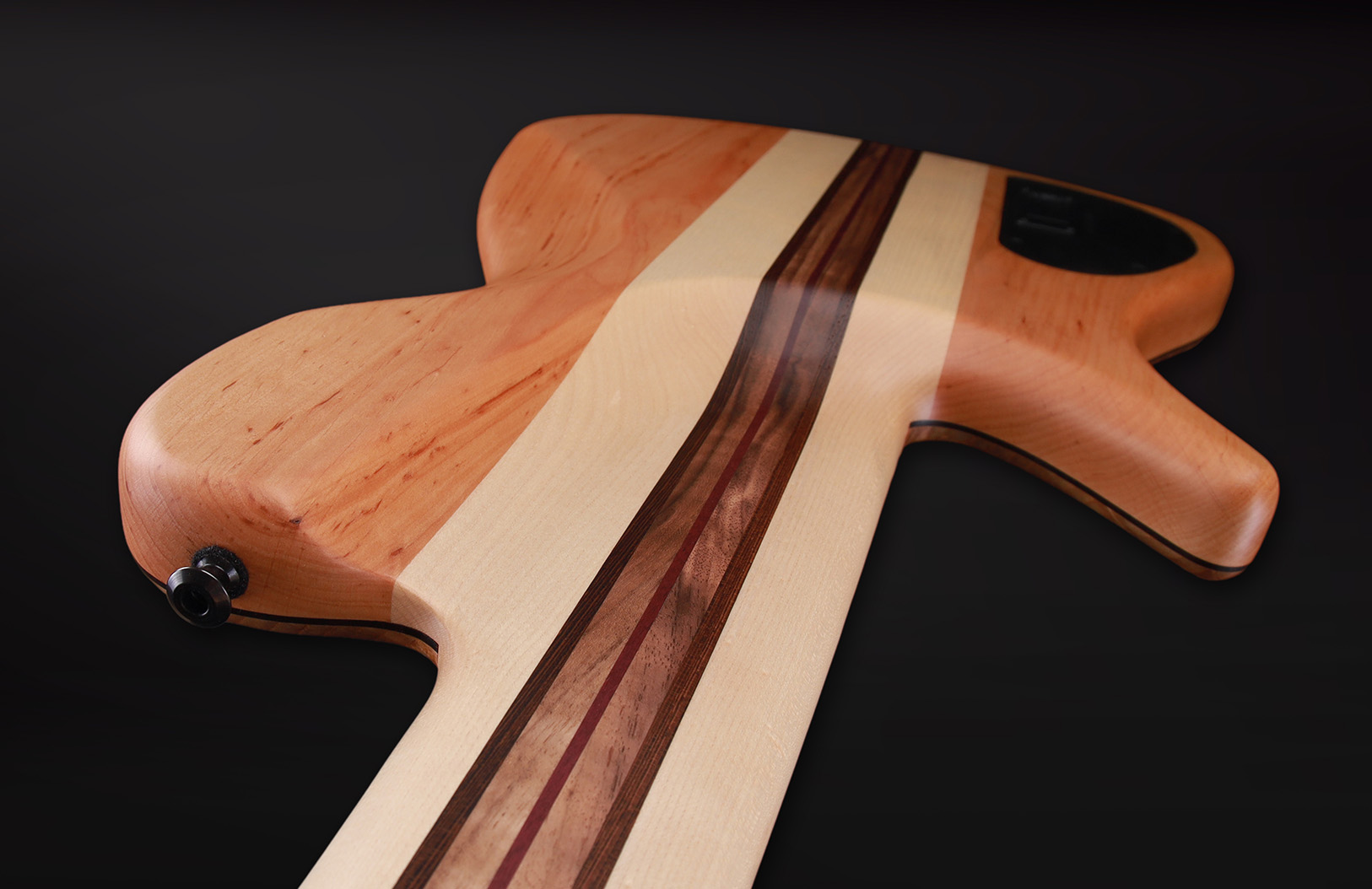

  • Neck: 7 pieces, Maple, Wenge. Walnut, Purpleheart
  • Width at the nut: 56 mm
  • Width at the 24.fret: 95 mm
  • Fingerboard radius: 15"/381 mm
  • Fingerboard: Wenge
  • Positional marks on the fingerboard: without
  • Positional marks at the side of the fingerboard: Pearl
  • Nut: Ebony
  • Body finish: Natural, Open Pore
  • Neck finish: Natural, Open Pore

Hardware

  • Bridge: Hipshot A style, black
  • String spacing at the bridge: 18.5 mm

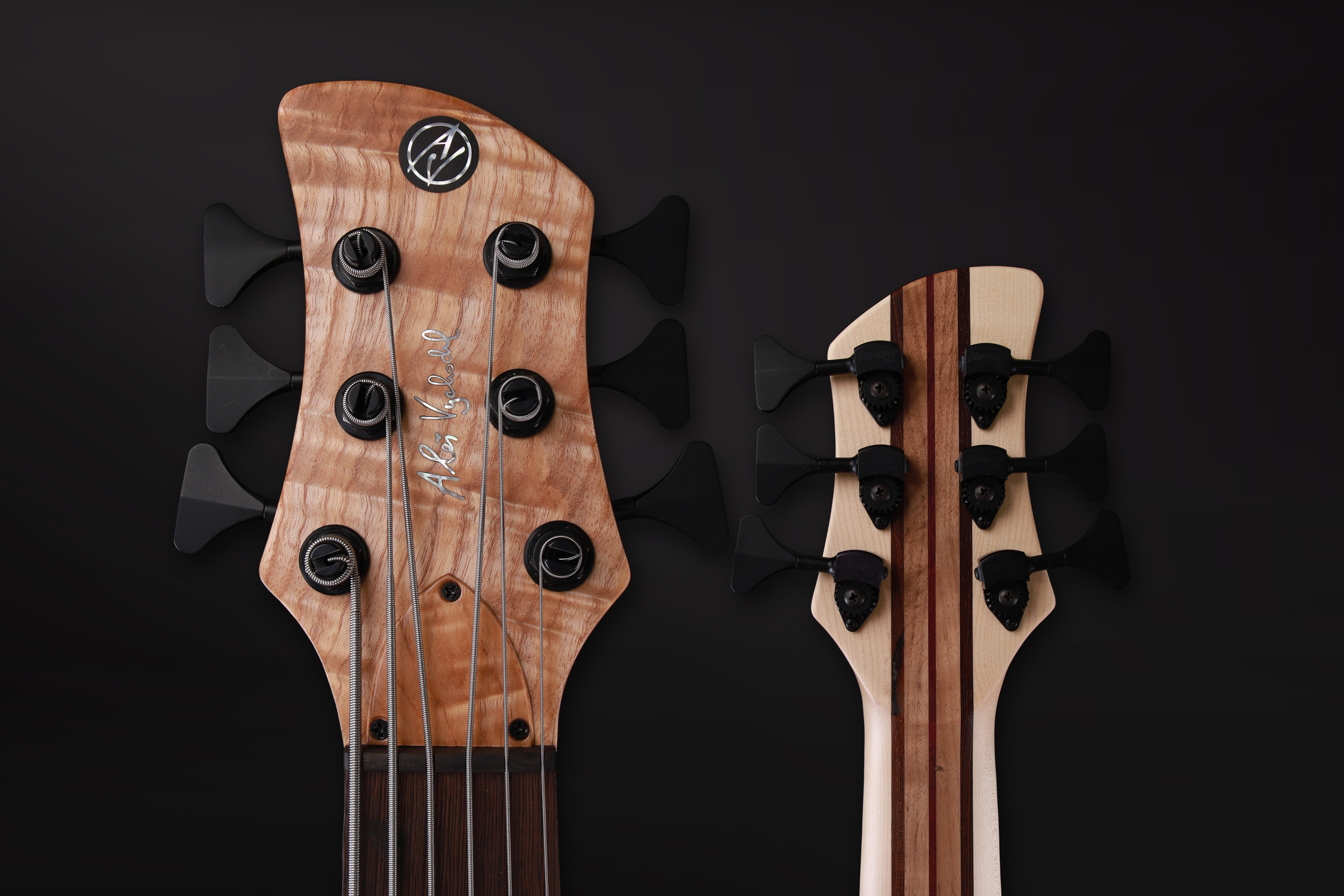

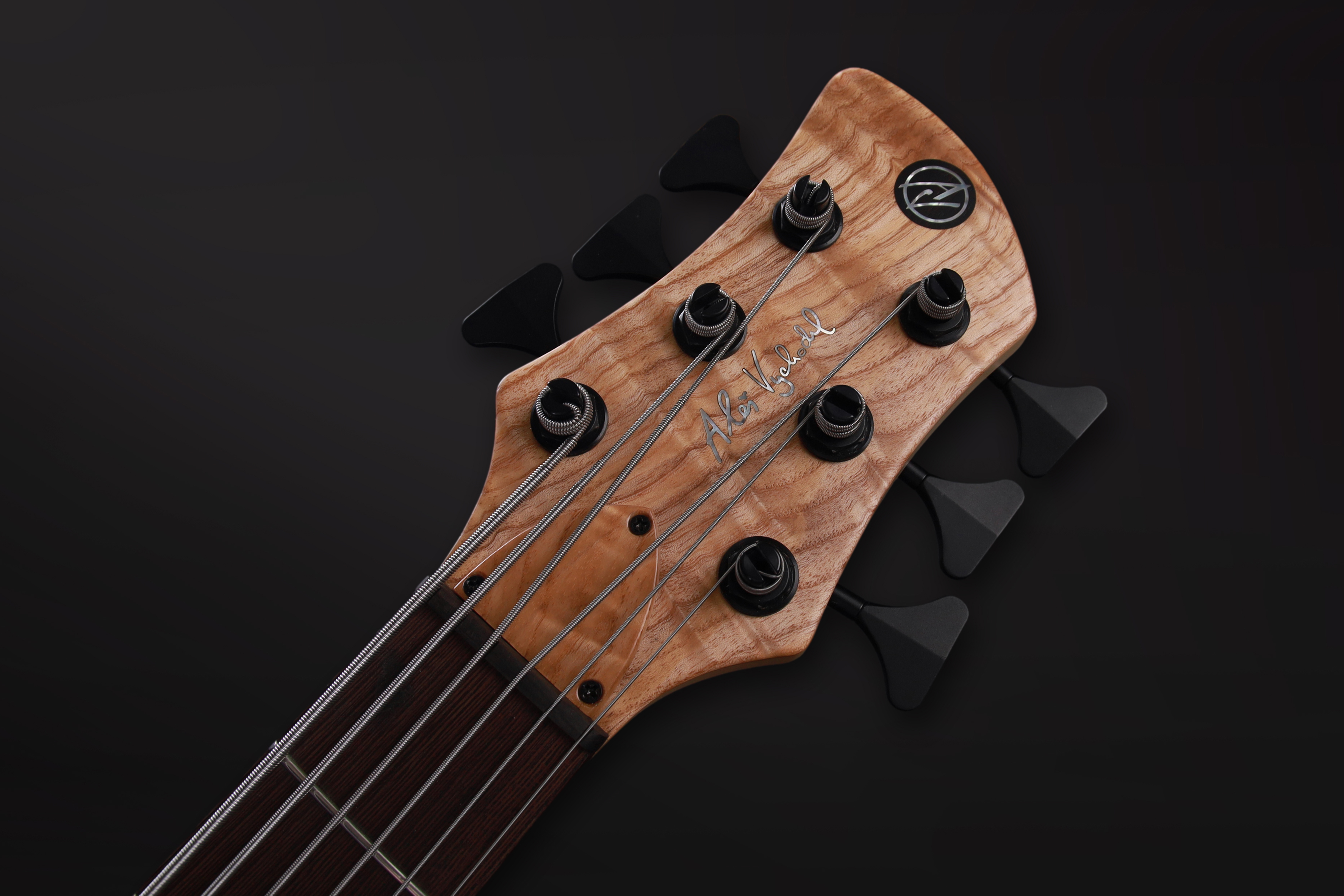

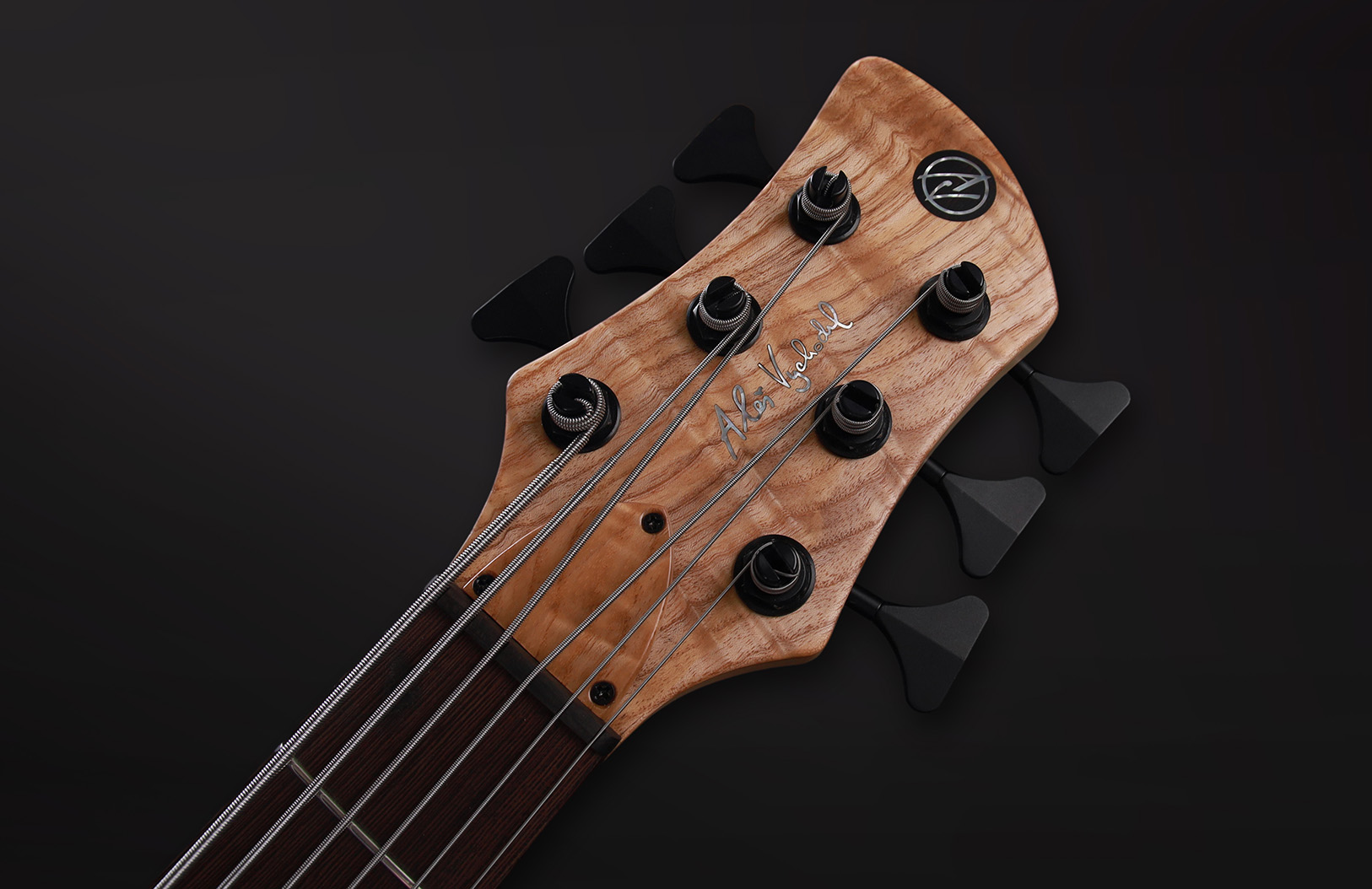

  • Tuning machines: Hipshot Ultralite with "Y" keys, black

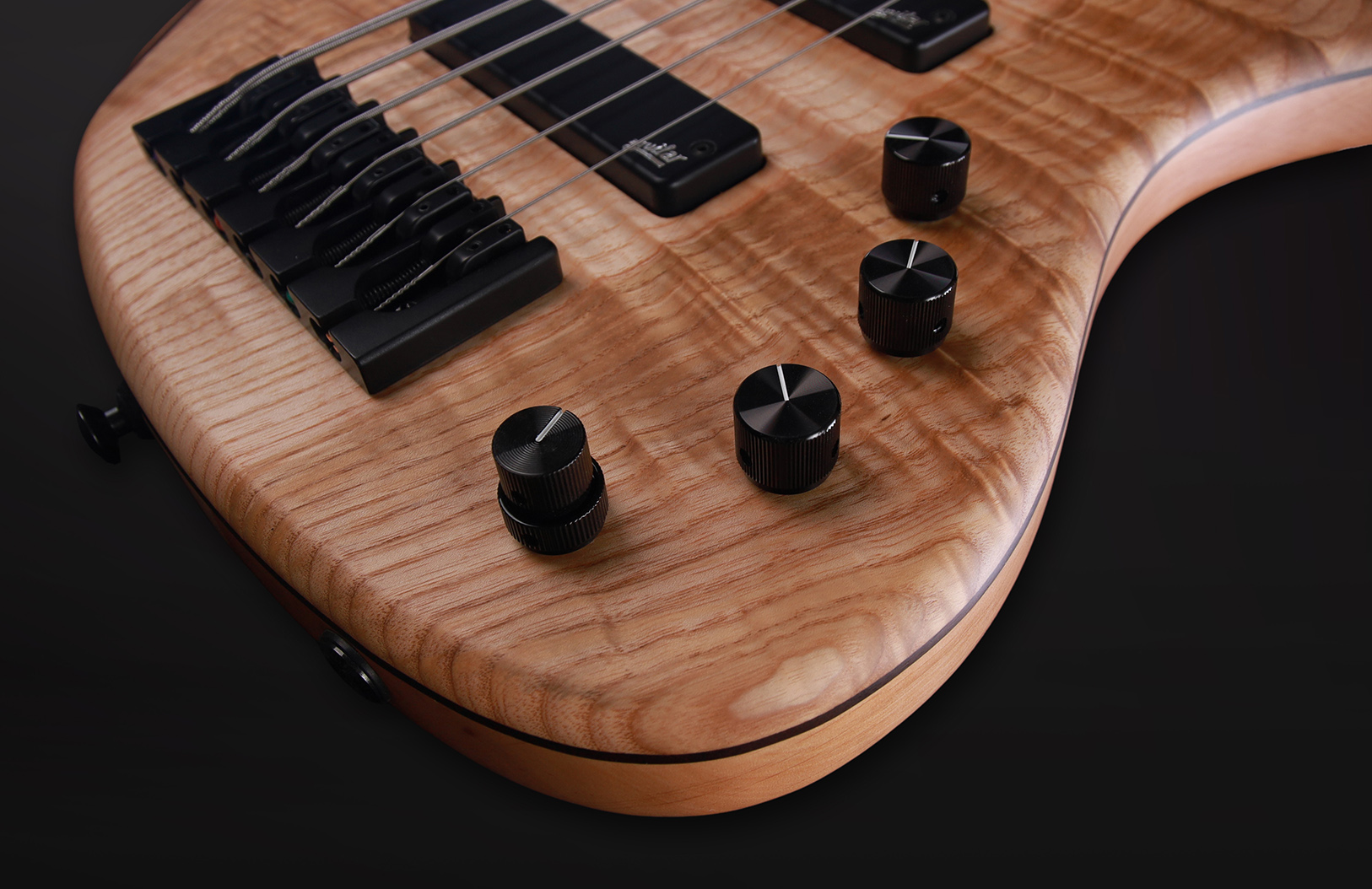

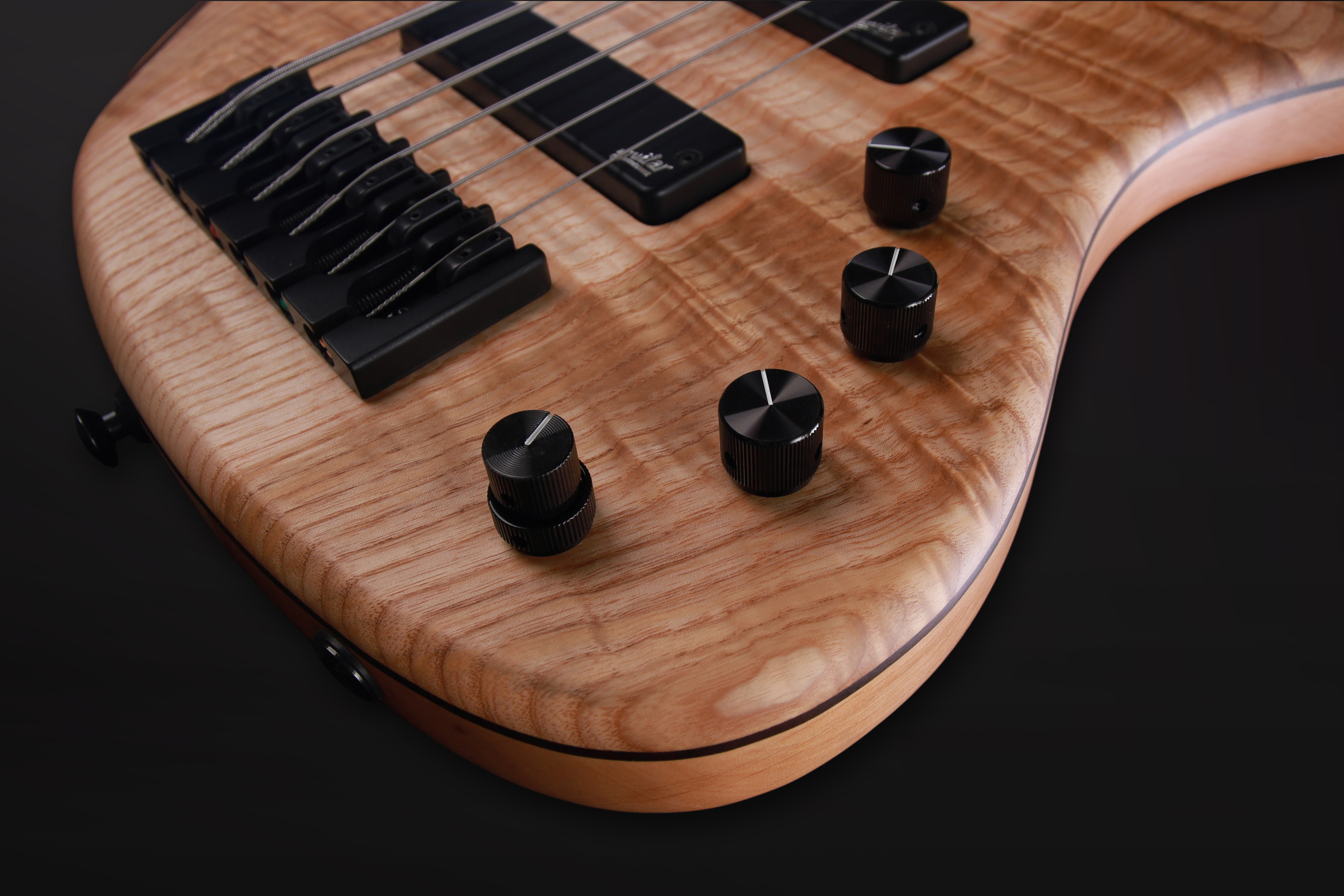

  • Control knobs: Hi-fi Metal knobs with flat head, black
  • Strap pins: Dunlop strap locks, black
  • Strings: DR Pure blues 0.032-0.125
  • Weight: 4.3 kg

Electronics

  • Neck pickup: Aguilar DCB
  • Bridge pickup: Aguilar DCB
  • Electronics: AV Basses Active/Passive electronics with parametric 3 band EQ
  • Wiring: 1x Main Volume with push/pull to passive, 1x Blend, 1x EQ Mids (tone control in passive voicings), 1x stacked EQ Bass/Treble
  • Output jack: stereo 6.3 mm
